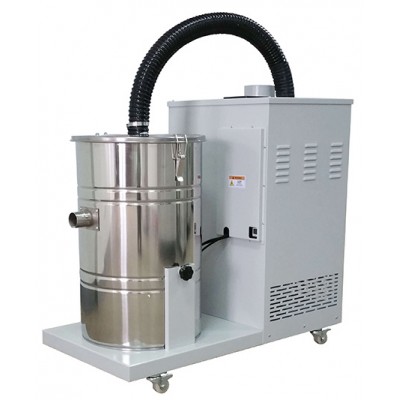

Designed for the electronics industry, these industrial vacuum cleaners provide efficient extraction of dust generated during the machining of epoxy for PCB routing.
Robust and high-performing, they help maintain a clean workspace while protecting your equipment and operators from fine particles.
An essential solution for your machining processes.
This device is ideally suited for dust extraction for systems with higher machining.
Technical specifications :
|
Models |
TD300 |
TD300L |
|
Power |
3 kW |
4,5 kW |
|
Air-intake flow volume |
144 m³/h |
192 m³/h |
|
Air-intake speed |
20 m/s |
29 m/s |
|
Air intake Ø |
D 50 mm |
|
Air out-take Ø |
D 125 mm |
|
Filter's bag material |
Polyester |
|
Type of material |
HEPA |
|
Size of filter bag |
730 x 950 mm |
|
Tank capacity |
50 L |
|
Protection grade |
IP55 |
|
Noise level |
|
|
|
Power supply |
AC 380 V |
|
Dimensions |
1 051 x 538 x 969 mm |
|
Weight |
115 Kg |
120 Kg |
