XSCAN-C080 automatic X-ray component counting system
Highlights
- No learning process -
- Centralized software update with AI
- Centralization and sharing -
- Image analysis
-- Self-learning
- -
- Algorithm tuning
-- Full testing and publication
- PCB inspection function
- MES - Production control software
- High throughput and accuracy
- High performance thanks to automatic counting
- Efficient inventory management
- Counting accuracy: 100% ~99.8%.
Options
- Barcode reader
- Printer
- MES interface

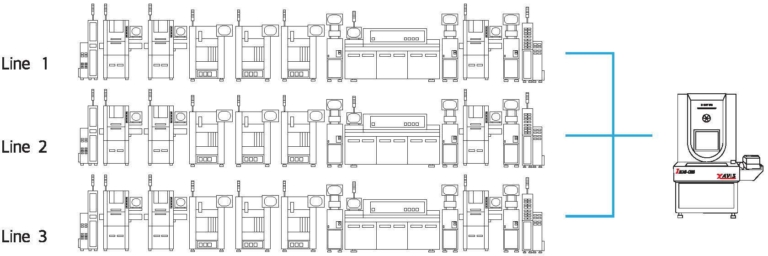

MES (Manufacturing Execution system)

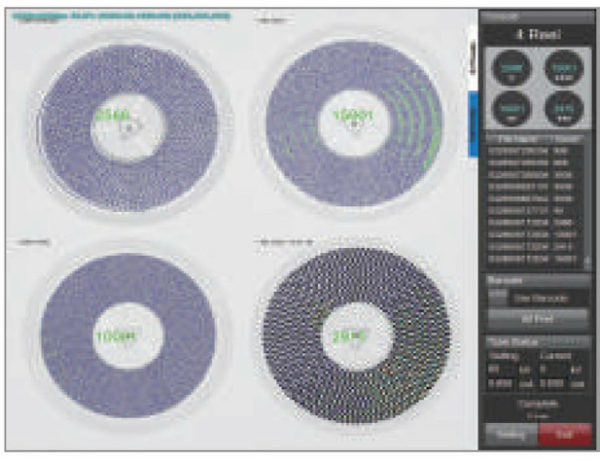

Result image

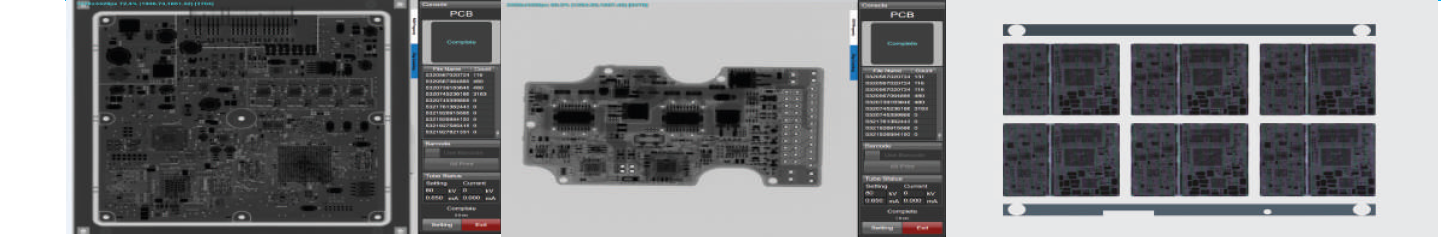

PCB mode image
PCB inspection

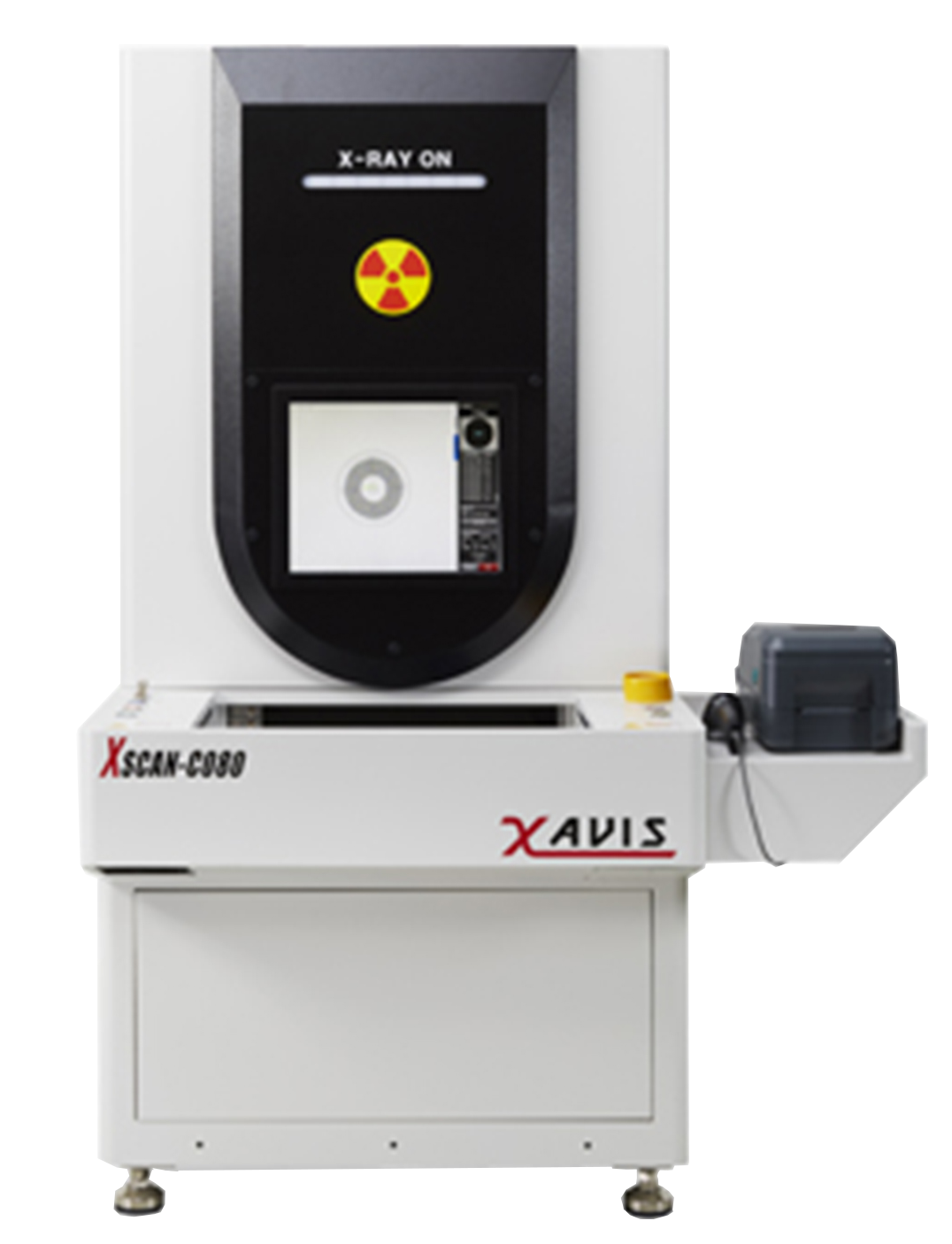

- Model: XSCAN-C080
- X-ray detector: 17-inch flat-panel detector
- Monitor: 17-inch touch monitor 1EA
- Inspection area: 390 x 390 mm
- Max. object size.: 380 x 80 mm
- Object loading weight: 5 Kg
- Operating system: Windows 10 ®
- Image management: Save NG / Good Images
- Dimension (LxPxH): 1200 x 920 x 2000 mm
- Weight:
- 700 kg
- Inspection time: < 9 sec
- X-ray leakage dose
- : < 1 uSv / Hour
- Electrical connection
- : AC220V, single-phase, 50/60 Hz
- Power consumption: 1 kW
