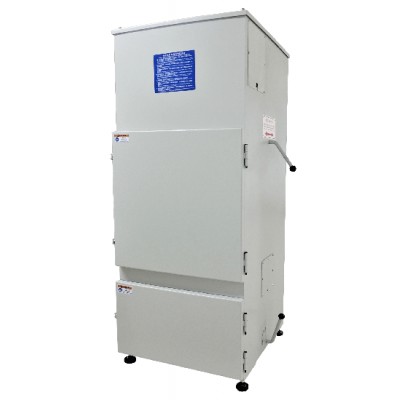

Dust collector TD200 serie - SMTix

TD200
Quantity
Add to wishlist

Designed for the electronics industry, these industrial vacuum cleaners provide efficient extraction of dust generated during the machining of epoxy for PCB routing.

Robust and high-performing, they help maintain a clean workspace while protecting your equipment and operators from fine particles.

An essential solution for your machining processes.



This device is ideally suited for dust extraction for systems with lower plane machining.



Technical specifications :



Model

TD200

TD200L

Power

2,2 kW (3 HP)

3,7 kW (5 HP)

Air-intake flow volume

2 400 m3/h

3 200 m3/h

Air-intake speed

42 m/s

56 m/s

Ø air-intake pipe

D 150 mm

Ø  air outlet

D 200 mm

Filter's bag material

Polyester +PTFE

Filter bag size

120 x 650 mm

Tank capacity

50 L

Protection grade

IP55

Noise level

< 70 db

< 75 db

Power supply

AC 380 V (220 V) 50/60 Hz 3 Phases

Dimensions (L x P x H)

738 x 744 x 1 764 mm

888 x 783 x 1 797 mm

Weight

208 Kg

250 Kg

TD200
