Dust collector TD300 serie - SMTix

TD300
Quantity
Add to wishlist

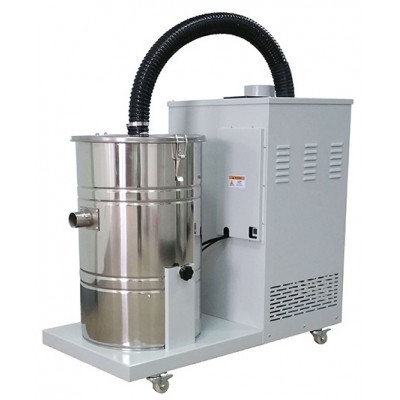

Designed for the electronics industry, these industrial vacuum cleaners provide efficient extraction of dust generated during the machining of epoxy for PCB routing.

Robust and high-performing, they help maintain a clean workspace while protecting your equipment and operators from fine particles.

An essential solution for your machining processes.



This device is ideally suited for dust extraction for systems with higher machining.



Technical specifications :



Models

TD300

TD300L

Power

3 kW (4 HP)

4,5 kW (6 HP)

Air-intake flow volume

144 m³/h

192 m³/h

Air-intake speed

20 m/s

29 m/s

Air intake Ø

D 50 mm

Air out-take Ø

D 125 mm

Filter's bag material

Polyester

Type of material

HEPA

Size of filter bag

730 x 950 mm

Tank capacity

50 L

Protection grade

IP55

Noise level

< 76 db

< 78 db

Power supply

AC 380 V (220 V) 50/60 Hz 3 Phases

Dimensions (L x P x H)

1 051 x 538 x 969 mm

Weight

115 Kg

120 Kg
