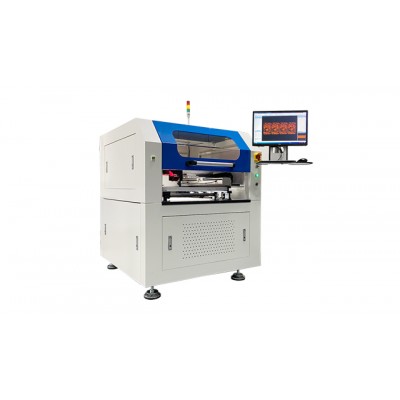

Used for detection of hole defects such as deviation, accuracy, shape, multi-holes, few holes, area error, and burrs at the edge for SMT stencil openings

Inspection specifications

.Measurement items: Opening area, position, offset, size, strange objects, burrs, blocked holes, missing holes, multiple holes, tension

.Measurement time: 50 second(130mm*100mm standard,data for 25,122 holes)

Performance specifications

.Opening area measurement accuracy: Gage R&R?5.0%

.Opening position measurement accuracy: ±10µm

.Max. detection opening: 24mm*16mm

.Min. detectable opening: 80µm*80µm

.Min. measurement aperture spacing: 80µm

.Number of detection openings: no upper limit

.Equipment capability index CMK: =1.67

.Equipment process capability CPK: =1.33

Optics

.Camera: 12 million pixels

.Lens: Dual telecentric lens

.Illumination: LED aluminum light board

.Resolution: 7.4µm

.FOV(Field of View): 24mm*16mm

.Positioning accuracy:±25µm

Hardware

.Platform: sheet metal frame

Data processing software

.CircuitCAM7 Basic

Stencil Frame

.Stencil frame size max. 736mm*736mm

.Stencil frame size min. 300mm*300mm

.Scanning range: 500mm*500mm

Others

.Power supply: 220V/50Hz

.Power: 1.5kW

.Air supply: 0.4 -0.6 Mpa

.Equipment Weight : 1000kg
