Specifications

.Number of feeders slots 8 mm: 70 (38 from the front, 32 from the back)

.Feeder types: 8/12/16/24/32 mm, vibratory feeders

.Number of pallets for IC - up to 12 pieces

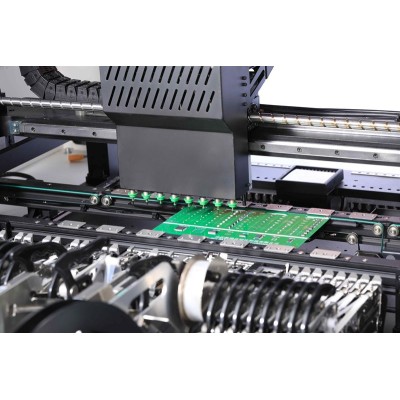

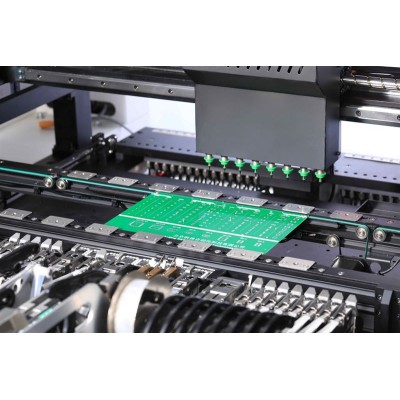

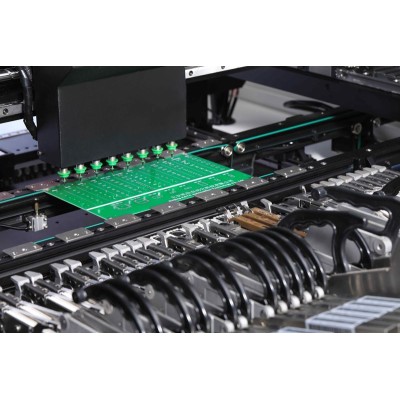

.Number of mounting heads - 8 pieces

.Accuracy - 0,01 mm

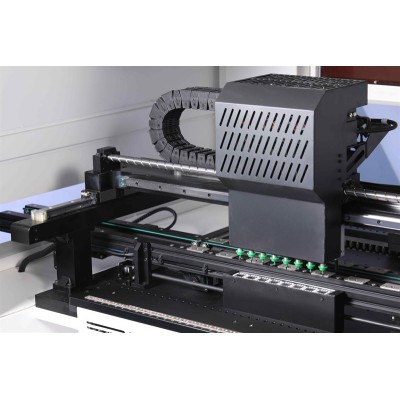

.Drivers -  servomotors Panasonic + ball screw + linear axes X/Y

.Video recognition - synchronous on 8 heads

.Modes - manual, semi-automatic, automatic

.Max placement speed - 15000 comp/hour

.Max axis movement Z - 20 mm

.Max dimensions of the PCB: 650x380 mm

.Mounted components - from 0201 to 45x45 mm, LED, QFP, BGA, lead pitch above 0,3 mm

.Max component height (Z) - 5,5 mm

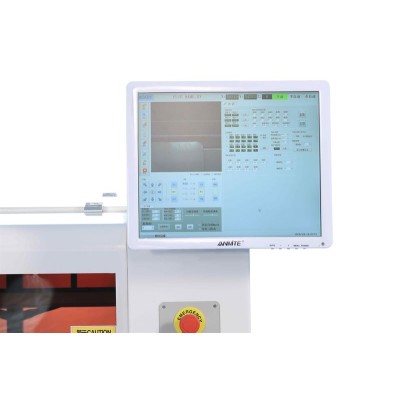

.Monitors — 2 x 17"

.OS — Win7

.Programming - data conversion, step by step, visual

.Power supply - 1 phase, 220 V, 50 Hz, 750 W

.Pneumatic pressure - 5 - 6 Bar

.Machine dimensions - 1500x1280x1410 mm

.Machine weight - 500 kg

.Quick release air connector:  10 mm

Delivered complete with double PC, software, start-up kit and 1st year maintenance kit, feeders are extra
