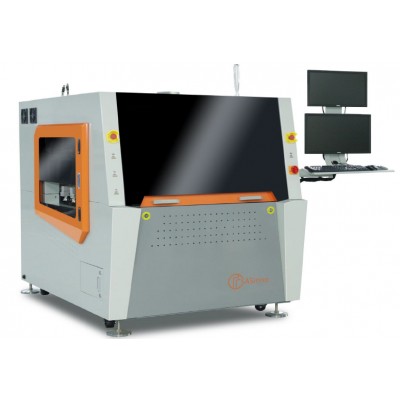

Features

XY servo table for solder station, servo axis Z1 for solder pot 1, servo axis Z2 for solder pot 2.   Optional with electro-magnetic pump made in Germany.

Convection top preheating zone, IR bottom preheating zone.

Standard equipped live-on camera for both solder pot's soldering process.

Standard equipped with wave height calibration.

Windows 10 system English version.

Drop jet fluxer made in Germany

Général

.Operating power/Max power:6KW/16KW

.PCB dimension:100x100 _ W508xL891mm (when one conveyor section combined)

100x100 -W508xL350mm (When two conveyor sections individually used

.Machine dimension:L 1830mm X W 1730mm X H 1660mm

.Net weight:1000KG

.Power supply:3PH 380V 50HZ _ (optionnel 3PH 220v 50Hz)

.Air supply:3-5 bars

.Exhausting required:600M3/h

Solder Management

.Standard Solder Station:2

.Solder Pot Capacity15 kgs

.Solder Temperature Control:PID

.Heat-Up Time:about 30 mins

.Solder Pot heater:380 ? max.

.Axes of Motion:X, Y, Z1, Z2

.Position Accuracy:+/- 0.05mm

Solder Nozzles

.Mini Wave Nozzles: Ø 4 à 12mm

.Customized nozzle: Available

(N2) Inertion Management

.N2 Consumption per Nozzle:1.5m3/H recommanded to connect the system to 4m3/H N2 source

.Pureté du N2 nécessaire : >99.99%

Flux Management

.Flux Nozzle Type:Drop jet fluxer made in Germany

.Flux Nozzle Quantity:2 sets as standard

.Flux Tank Capacity:1L

.Flux Tank Quantity:2

Preheat

.Preheating method:Convection top preheating and bottom IR preheating

Controlling System

.Industrial PC:Yes

.Typical Program Time:10 Minutes

.Program method:Draw path in scanned picture of board

.Système de contrôle : PC

Warranty 2 years
