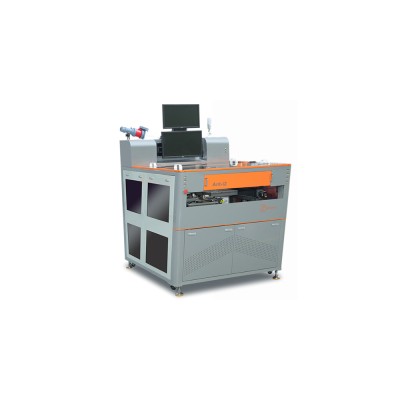

General

.Operating power/Max power:7KW/13KW

.PCB dimension:50x50---350x450mm (When use only one solder nozzle)

50x50---350x215mm (When use two wave nozzles parallely)

.Machine dimension:W1260mm X D1640mm X H1895MM

.Net weight:550KG

.Power supply:3PH 380V 50HZ   MAX 34A Equip 40A contactor in factory

.Air supply:3-5 bars

.Exhausting required:200M3/h

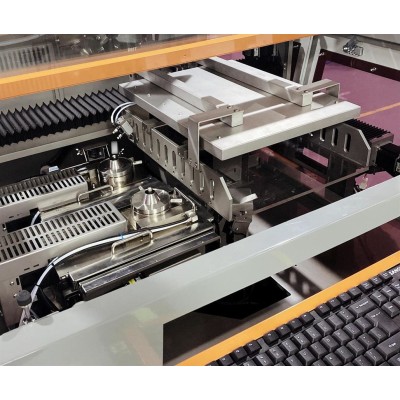

Solder Management

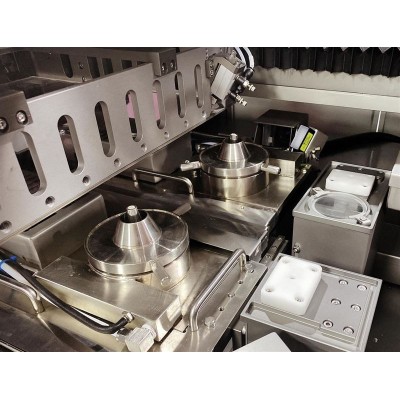

.Standard Solder Station:1

.Solder Pot Capacity:35 kgs

.Solder Temperature Control:PID

.Heat-Up Time:About 50mins

.Solder Pot heater:380 ?

.Solder Pot heater:2.4kw

.Solder level alarm:Standard

.Wave tunnel:Two individually

.Wave control:Servo motor, mechanical pump

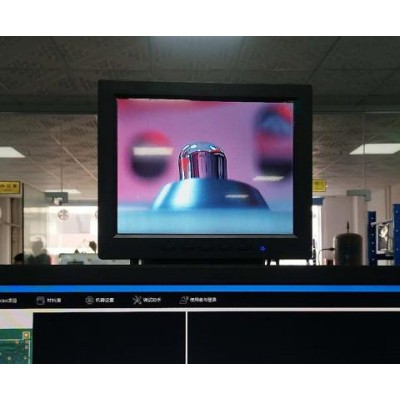

Solder Nozzles

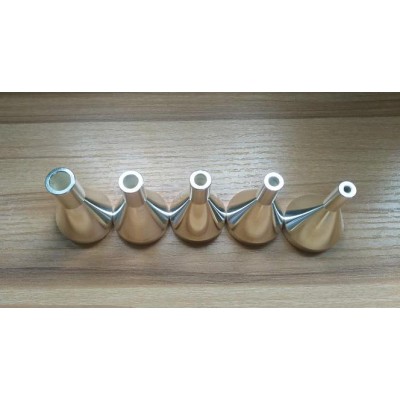

.Mini Wave Nozzles: Ø 4, 6, 8, 10, 12 mm

.Customized nozzle: Available

.Nozzle Material:Proprietary Alloy

(N2) Inertion Management

.N2 heater: Standard Equipped

.N2 Temp PID Control Range:0 - 350?

.N2 Consumption per Nozzle:1.5m3/H - Total need 3m3/H (Selmate-4 N2 generator recommended)

.Required N2 Purity:>99.99%

Flux Management

.Spray Flux Nozzle:Standard equipped with drop jet nozzle made in Germany

.Flux nozzle number:2 sets

.Flux Capacity:1L

.Flux Tank:Constant pressure tank

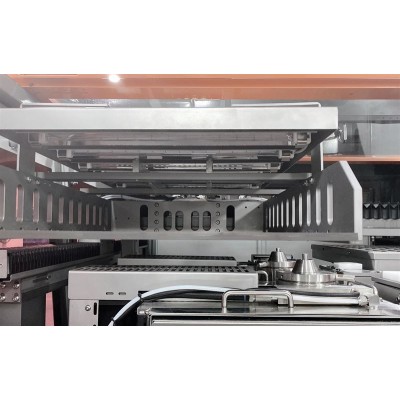

PCB Robotic Platform

.Axes of motion:X, Y, Z

.Motion control:Servo motors for X,Y, Z

.Position Accuracy:+/- 0.05mm

Preheat

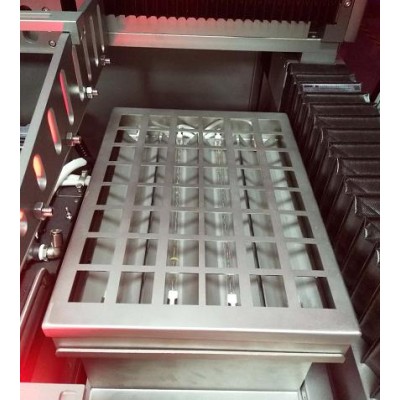

.IR heater:2kw

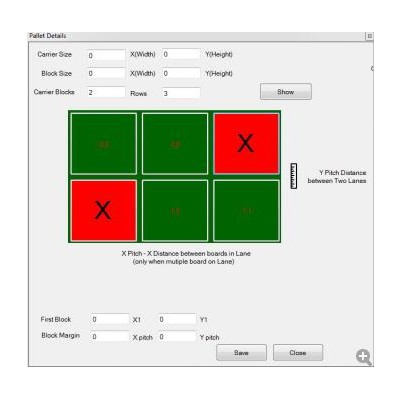

Controlling System

.Industrial PC:Yes

.Typical Program Time:10 Minutes

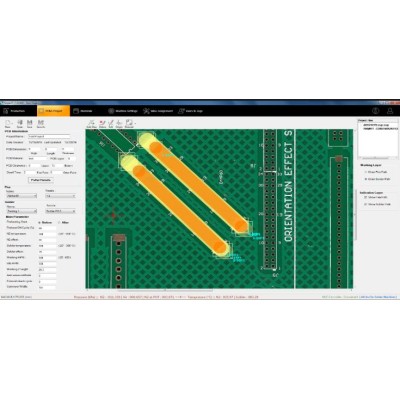

.Program method:Draw path in scanned picture of board

.Controlling system:PC

Warranty 2 years
