The KAYO-A4 is an automatic SMD report station.

Compact it can accommodate 46 feeders as well as 6 placement and positioning cameras. The placement accuracy is 0.01 mm for a placement capacity of 7000 components per hour (max).

Quick to set up and easy to handle, the KAYO-A4 Pick & Place is the ideal machine for the assembly of your SMD series.

Features

- The machine is delivered with 6 cameras : 1 for the detection of the sights, 4 cameras for the mounting nozzles and 1 high precision camera

- Camera refocusing & detection of rejection marks

- Installation capacity of 7000 components per hour (max) with an accuracy of ± 0.01 mm

- Works under Windows® environment

- The drivers have been optimized to guarantee quick component placement while improving precision and a low noise level

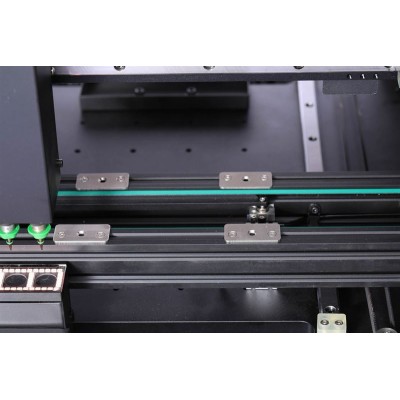

- An automatic board transit system within the machine in three sections saves time and efficiency

KAYO A4

Feeder No. :  46 (8 mm)

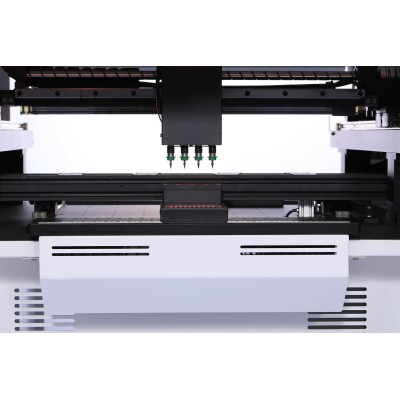

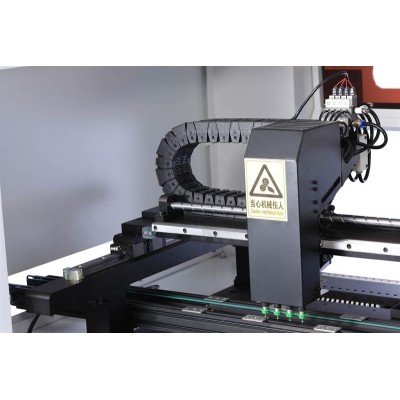

Mounting nozzles : 4

Max. mounting speed : 7000 CPH

Average mounting speed : 4000 - 5000 CPH

Positioning accuracy : 0.01 mm

Modes : Manual, semi-automatic, automatic

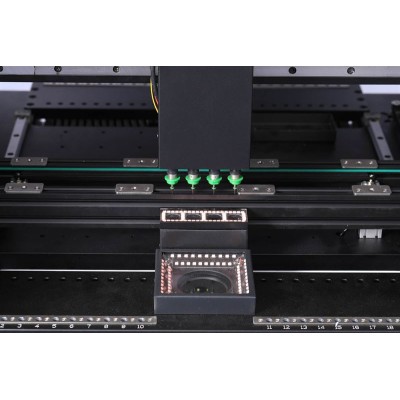

Cameras : 1 Mark recognition camera, 4 high speed recognition cameras, and 1 high-precision recognition camera

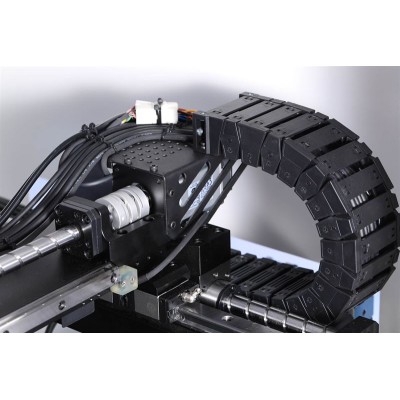

Driving motor : Panasonic Servo-motor

Recognition method : Four heads recognize synchronously

Nozzle vacuum source : High-speed ON/OFF vacuum generator

Max circuit board area : 480 x 300 mm

Z axis maximum range : 20 mm

Mounted components : 0402 to 45 x 45 mm, LED, QFP, BGA, step outputs = 0,3 mm

Max component Height (Z) :  5,5 mm, upgrade to 10 mm on request

Belt type feeder : Tape feeders 8/12/16/24/32 mm, vibratory feeders

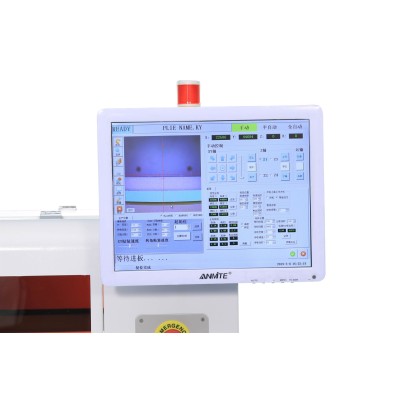

Monitors : 15"

OS :  Windows® 7

Programming : Data conversion, step by step, visual

Pneumatic pressure : 5 - 6 Bar

Power :  600 W

Power supply : 220 V, 50 Hz

Dimensions : 1180 x 1080 x 880 mm

Weight : 240 Kg
