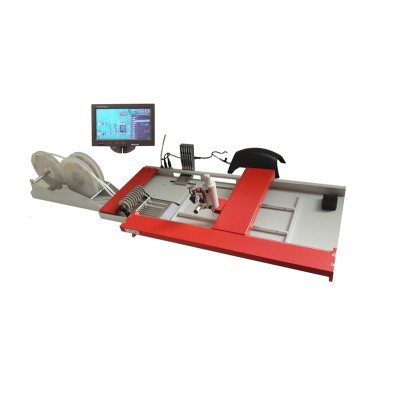

The EASYPLACER.VL manipulator is a new manual system for the placement of SMT-components.

It is a perfect ergonomic station including a lot of functions with an attractive price.

Slight arm movement in axis X and Y allows comfortable choosing components  and their placing all over the workplace. Place your component with the head on the Z axis. You can rotate also easily the component on 360°.

A camera located near the vacuum pipette and connected to monitor helps the operator for the placement of finepitch components.

Perfect ergonomics

Very efficient working area of 350 x 210 mm

Placement make easier by camera connected to a 15,6" TFT LCD monitor, included as standard

Acccuracy 0603 & 0402 chips

Low cost machine

The arm support assures a comfortable position for the operator

Sensitive head with 360° rotation of pipette

Efficient lighting built-in the arm

Vacuum pump delivered as standard

3 board supports

Optional feeders available

Technical specifications

Working area : 350 x 210 mm

Colour camera + 15,6" TFT LCD monitor : Included as standard

Placement accuracy : 0402 to QFP
Rate : until 700 components / hour

Sound level : < 70 dB(A)

pressure/flow : 0>,024 Mpa / 5 dm3 / min

External dimension (L x l x H) : 790 x 390 x 170 mm

Manipulator + Feeder dimensions : 1145 x 430 x 195 mm

Net weight : 6 Kg

Electrical supply : 230 V-  50/60 Hz

TECHNICAL DATA OF VISION SYSTEM

CCD camera

Viewing angle: 78°

CMOS sensor: 1/4" - 8 Mpx

Video resolution: 1080p / 30fps - Full HD

PC monitor

Display dimensions: 15.6" (40 cm) widescreen 16:9

Resolution: 1366 x 768 px

Dimensions with stand: 378 x 281 x 189 mm

The PC monitor has standard settings (brightness, contrast, color), which can be individually adjusted according to the actual need.

The Pick and Place station EASYPLACER.VL is delivered complete with :

1 colour camera with 15,6" TFT LCD monitor

1 vacuum pump, 230V - 6W

2 different needles (1,37mm and 0,6 mm)

2 different Ø of rubber discs for the prehension of big components (3,5 mm and 6,4mm)

3 board supports

Available Options & accessories for EASYPLACER.VL manipulator :

Universal feeder for 10 pcs tapes 8 mm, short strips - Ref V900130

Holder for 10 reels for V900130 - Ref V800036

Standard feeder for 5 sticks - ICs S08 - Réf V900131

Standard feeder for 5 sticks - ICs S16 - Réf V900132

Set of 12 bulk components snap-boxes (B3), new - Ref V800045

Set of 12 ESD bulk components snap-boxes (B3K), new - Ref V800044

EASYPLACER mounting set for 12 bulk components snap-boxes (B3) - Ref V800039

Spare mechanical PCB holder - Ref V800035

Spare vacuum pump for EASYPLACER (2 models) - Ref V700120

B3 bulk snap-boxes mounting plate - Ref V800038

Optional feeders available
