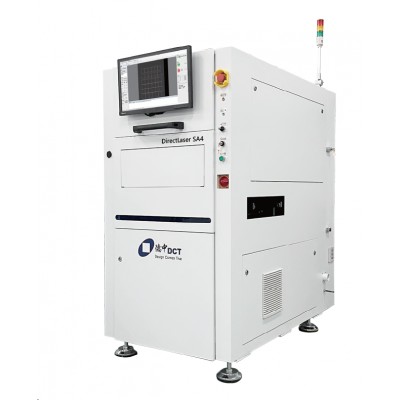

Online laser cutting equipment is suitable for carrier-orbit transport cutting, easy integration into production lines, and is suitable for precision and rapid full cutting of various materials, including PCB outlines (including pre-assembled circuit boards), PCB breakpoint cutting; FPC outline cutting, cover film cutting, rigid-flex circuit board delidding and outline cutting. It can also be used for LTCC/HTCC ceramic punching; direct processing of conductive patterns; removal of corrosion-resistant layers, removal of process leads and soldermask layer windowing; mature ceramic punching; and FPC micro-via processing.

Several versions available :

Other laser sources on request (Picosecond, ADVANCED OPTOWAVE brand…)

System consisting of:

.Laser source (Specifications according to the version)

.Granite X/Y table

.Visionsystem with high resolution camera

.Camera supported positioning system with fiducial recognition

.X/Y axises driven by Linear motor

.Industrial control PC and display

.Data processing software: CircuitCAM7 Laser

.Machine operating software: DreamCreaTor 3

.Exhaust unit HPremi220

Technical data for laser system:

Technical data for exhaust unit :
