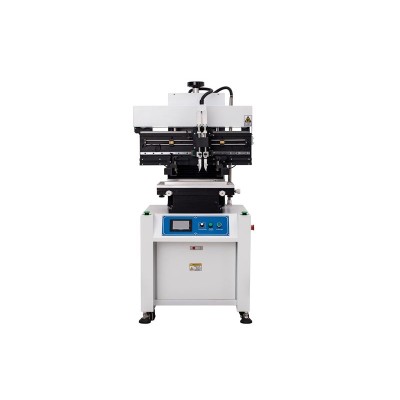

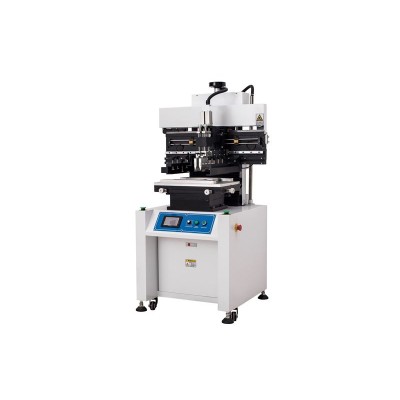

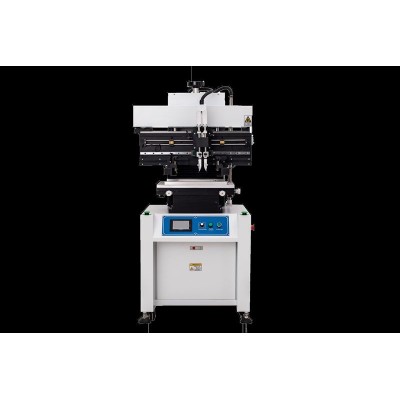

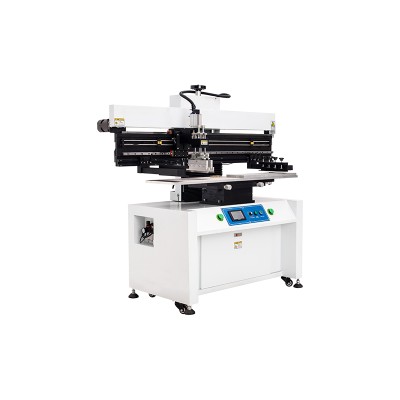

System features:

.PLC control, touch screen;

.Automatic height adjustment of squeegees relative to the stencil;

.Pressure adjustment squeegee;

.Squeegee speed adjustment;

.Safe start of the printing process using two buttons;

.PCB positioning using reference holes or PCB edges;

.Printing modes: single pass, double pass;

.Starting the printing process: semi-automatic, automatic;

.Function of measuring and counting printing time;

.Emergency stop function in case of errors in the printing process;

Specifications:

.Max stencil frame dimensions  - 1400?320 mm;

.Max PCB dimensions  - 1200?320 mm;

.Table printing dimensions  - 1250?320 mm;

.PCB thickness - 0,2 - 2 mm;

.Print table stroke - ± 10 mm (forward / backward, left / right);

.Accuracy/repeatability printing - ± 0.02 mm;

.Printing speed - 0 - 100 mm/sec;

.PCB positioning system - manual;

.Power supply - 1 phase, 220 V, 50/60 Hz, 100 W;

.Pneumatic pressure - 4 - 7 Bar;

.Machine dimensions - 1800?900?1680 mm.
